Product Overview
The Casing Cup Tester produced and sold by our company Huichi Petro
is a high-pressure pressure test tool designed for oil, gas and
water well casing and blowout preventer (BOP) systems. It is widely
used in oilfield drilling, completion and pipeline sealing and
integrity testing scenarios. In the process of oil and gas
extraction, the good condition of the casing is directly related to
the well pressure control, fluid transportation and the safety and
sustainability of extraction. By placing the Casing Cup Tester
inside the casing, the casing can be accurately and quickly tested
for sealing layered pressure, and potential leaks and defects can
be found in time to ensure the sealing and safety of wellhead
equipment in accordance with API standards (such as API 7-1).
________________________________________
Working Principle
When the Casing Cup Tester is working, the sealing cup is tightly
attached to the inner wall of the casing through a mechanical
device to form a closed test space. Then a test medium (usually
nitrogen or water) with a certain pressure is injected into the
space, and the pressure sensor is used to monitor the pressure
changes in the test space in real time. If there is a leak in the
casing, the pressure in the test space will drop rapidly, and the
sensor will transmit the pressure change signal to the control
system. After analysis and processing, the system accurately
displays the leak location and amount.
________________________________________
Core functions and technical advantages
1. Efficient pressure testing
o Supports a single operation to complete the layered pressure test
of the casing and BOP system, with a maximum pressure of 15,000 psi
(special reinforcement design).
o Applicable to a variety of casing sizes (4-1/2 inches to 20
inches) and wall thickness specifications, with strong
adaptability.
2. High temperature and high pressure resistant rubber cup
o Made of reinforced rubber material, it can withstand high
temperature and high pressure under extreme working conditions to
ensure test sealing.
3. Standardized design
o Complies with API standards and is compatible with common
drilling tool connection specifications such as NC26, NC31, NC38,
and NC50.
4. Convenient operation
o The tool has a compact structure (about 2.1-3.2 feet in length),
high installation and recovery efficiency, and is suitable for well
site and mining area pipe pile testing.
________________________________________
Technical parameters
| Type | Thread Type | Applicable Casing | Pressure Bearing Area (cm2) | Max. Sealing Pressure (MPa) | Length (mm) |
| O. D. (in) | I.D. (mm) |
| ST127 | NC26 | 5 | 108.6-114.1 | 81 | 70 | 640 |
| ST140 | NC31 | 5 1/2 | A | 124.3-125.7 | 104 | 70 | 700 |
| B | 118.6-121.4 | 96 |
| ST178 | NC38 | 7 | A | 159.4-164 | 155 | 35 | 700 |
| B | 150.4-157.1 | 133 |
| ST245 | NC50 | 9 5/8 | A | 224.4-226.6 | 305 | 35 | 840 |
| B | 216.8-222.4 | 282 |
| ST273 | NC50 | 10 3/4 | A | 250.1-255.3 | 402 | 35 | 840 |
| B | 242.8-247.9 | 366 |
| ST339 | NC50 | 13 3/8 | A | 317.9-320.4 | 682 | 35 | 840 |
| B | 313.6-315.3 | 657 |
________________________________________
Application scenarios
The Casing Cup Tester produced and sold by our company Huichi petro
is widely used in drilling operations in the oil and gas
industries, especially in casing installation, completion
operations and subsequent production processes, to detect the
sealing performance and pressure bearing capacity of the casing to
ensure the integrity and safety of the wellbore structure.
Includes:
- New well completion test: After drilling and casing installation in a new well, use the
Casing Cup Tester to conduct a comprehensive sealing test on the
casing to ensure the safety and reliability of the new well before
it is put into production.
- Maintenance and inspection of old wells: For in-service oil wells, use this equipment regularly to inspect
the casing, timely discover problems such as casing wear and
corrosion caused by long-term use, take repair measures in advance,
and avoid safety accidents such as blowouts.
- Inspection of special working wells: For example, high-temperature and high-pressure wells, oil wells
containing corrosive gases such as hydrogen sulfide, the Casing Cup
Tester can effectively complete the inspection of casings in these
special working wells with its excellent performance and
adaptability.
________________________________________
Service and guarantee
- Quality certification: ISO 9001 quality management system, produced in accordance with
API standards.
- Customized service: Provide personalized solutions for different casing sizes,
connection types and pressure levels.
- After-sales support: Professional teams provide technical consultation and rapid
maintenance response to ensure long-term and stable operation of
equipment. During the warranty period, if there is any quality
problem with the product, we will provide free repair or
replacement service.
- Purchase Notes: Please choose the appropriate Casing Cup Tester model according to
the actual drilling operation needs, and consult our professional
team before purchase to obtain more detailed product information
and technical support. We provide comprehensive after-sales
service, including product training, technical support and regular
maintenance to ensure that you get the best experience during use.
________________________________________

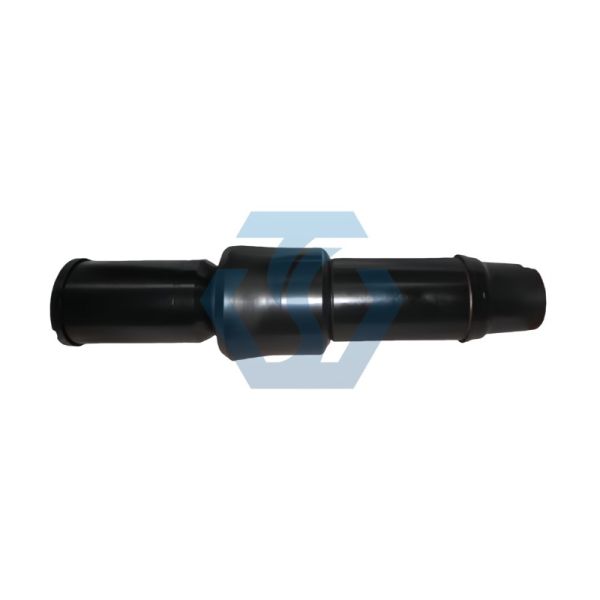

Product display:
________________________________________
Product package:
Product packaging: iron box or iron frame, wooden pallet, wooden
box, bulk or customized according to customer requirements.
________________________________________
Product detection:
100% inspection will be carried out before shipment, and video
image data and inspection reports will be provided.
________________________________________
Accepted delivery terms:
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express
Delivery, DAF, DES.
